125kHz Card Technology

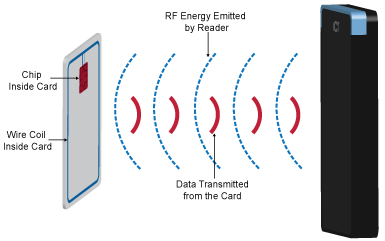

• RF Energy is constantly emitted from the reader
• When a card comes within this field of energy, it is powered up and transmits its card number
• The reader picks this transmission up, decodes it and sends it over the cable as data
• The data that is transmitted by the card is not encrypted and is always the same
• Data transfer is one way only. The reader is not able to communicate with the card.
