Card Reader Connection

PRT-WX-DIN model only.

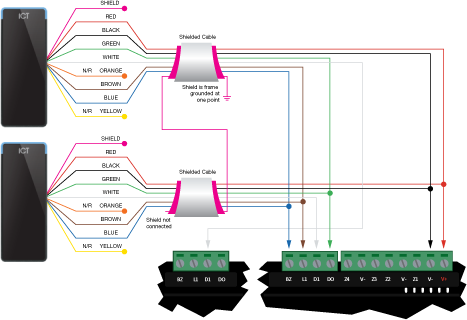

When operating in multiplex mode, the Controller or RDM2 allows the connection of 4 Wiegand reading devices controlling two doors each with entry/exit readers.

The secondary reader will have all connections wired to the same port as the primary card reader with the DATA 1 connection wired to the opposite reader connection DATA 1 input.
