Card Reader Connection

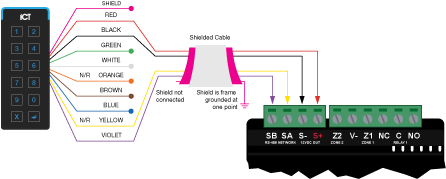

This diagram shows the connection of a single RS-485 Reader connected in Entry only mode using the PRT-WX-DIN-1D controller.

When the green and orange wires are not connected together, the reader defaults to an Entry reader.
