Lock Connection

The PRT-WX-DIN controller and the RDM2 provide 2 lock output relays that can be used to switch electric locks

• When using a door with an entry and exit reader, the LOCK output should be connected to LOCK 1, and enable the swap lock option for the second reader input to allow the reader LED's to display the correct status

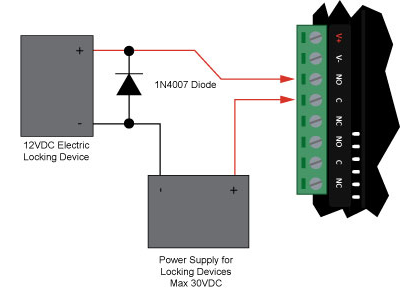

• The 1N4007 diode is supplied with the product and must be installed at the electric strike terminals
• Always switch the + leg of the circuit
