Areas and Input Types

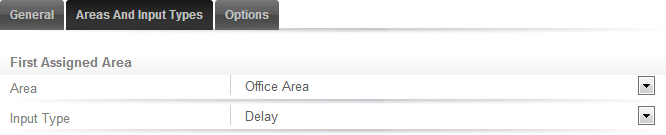

Select the Areas and Input Types tab

• Set the Area to the Office Area area
• Set the Input Type to Delay

Each input must be assigned to at least one area for it to perform any function in the system. Inputs can be assigned to as many as four areas and they can perform a different function in each area. For example, a reed switch on a door that connects two areas, or a PIR used for intrusion detection and to control lighting when movement is detected.
