EOL Configuration

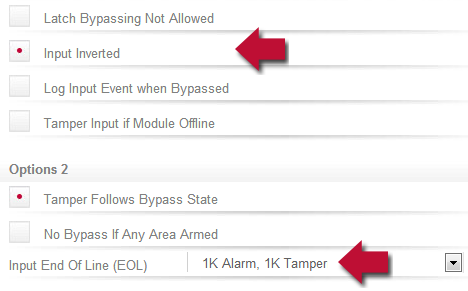

The Options tab contains the following settings for EOL Configuration.

• The Input Inverted option defines the contact type. By default all inputs are normally closed. Setting this option will change the input to normally open. At least one input open and close is needed to correctly update the input state.
• The Input End of Line (EOL) should be according to the resistors used when wiring the EOL configuration. These would normally be defined during the Security Wizard.
