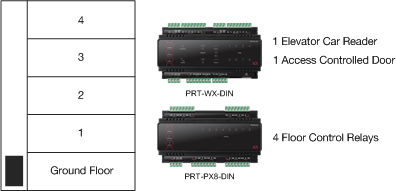

Example: 1 Car, 4 Floors, Door Control

In this example, we need 2 reader ports - one for the elevator car reader, and one to provide standard door access control - so are using a standard PRT-WX-DIN Controller.

We've chosen a PRT-PX8-DIN to provide the 4 floor control outputs, and can use the remaining 4 outputs for other purposes such as lighting control or sirens.

Controllers and Reader Expanders can be used to provide elevator control and door access control simultaneously
