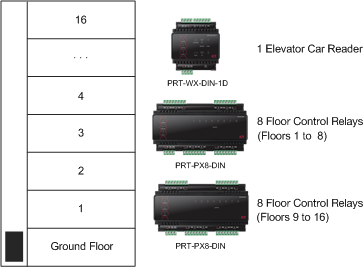

Example: 1 Car, 16 Floors

In this example, we are using a PRT-WX-DIN-1D Single Door Controller as we only need one reader port.

We need 2 PRT-PX8-DIN modules to provide the 16 floor control outputs.

Protege WX can control a maximum of 16 floors.
