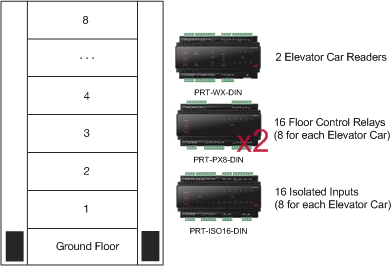

Example: Destination Reporting

In this example, we need 2 reader ports - one for each elevator car reader - so are using a standard PRT-WX-DIN Controller

With 8 controlled floors and 2 elevator cars, we need 16 outputs to control the floor relays so we're using 2 PRT-PX8-DIN modules

We want destination reporting, so we're also using the PRT-ISO16-DIN module to provide the 16 isolated inputs required for button feedback
