Programming the Outputs

• An output is required for every controlled floor, and for every elevator car. This means if we had 2 elevators covering 4 floors, we'd need 8 outputs.
• In our scenario, we have 4 controlled floors and 1 elevator car, so we just need 4 outputs
• The output is required to establish and break contact between the elevator car panel and the lift controller

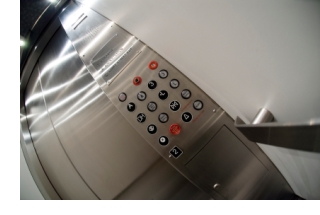

• We need to configure an output for each button that can be pressed to select a floor
