Configuration

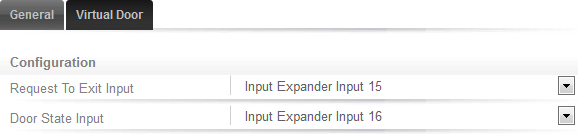

Select the Virtual Door tab to view the configuration options.

• Set the Request to Exit Input.
  • The REX Input is connected to the Virtual Door's REX Input. When the input is closed, the Lock output is activated and the door can be opened for the Max Open Time when no alarms are being generated. This input must also be placed in an armed area for the Virtual Door to operate.
• Set the Door State Input
  • The Door State Input is connected to the Door Position input.
