Inverted Follow and Test Output

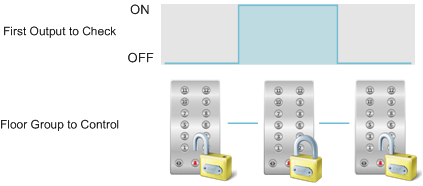

Inverted Follow and Test Output: This mode can be used when the state of the elevator group is required to do the opposite of the checked output as the output is inverted.

• If the checked output turns on, the controlled floor group locks.
• If the checked output turns off, the controlled floor group unlocks.

In between state changes, the controlled floor group's state is continually tested at approximately 30 second intervals. If the controlled door state has been changed by an external operation, the programmable function restores it.
