PRT-WX-DIN to Salto PoE Router

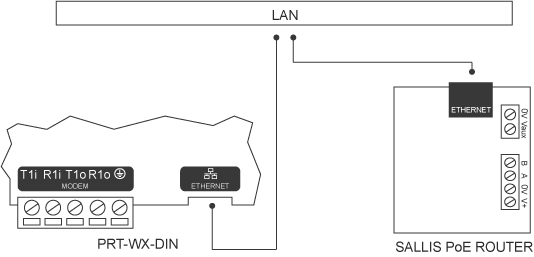

The PoE Router is connected to the Protege WX Standard Controller via a PoE switch. This gives the router both a power supply and a network connection.

If a non-PoE switch is used, power can be supplied to the router through a power adapter that supplies 500mA at 12VDC. This power supply is directly connected to the router via the 0V and Vaux ports.
