Power Requirements - PoE

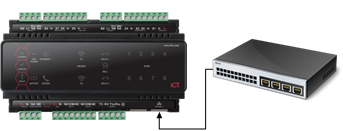

When using a PoE Router as the power source to the controller, the N+ and N- terminals become the network outputs to be used for powering the module network. The auxiliary outputs should be used for powering readers and auxiliary loads such as locks.

When using a PoE Router as power source for the controller, the rating for the auxiliary outputs will be different to those when the controller is being powered by an ICT PRT-PSU-DIN or a 12V DC supply.
