Power Requirements - PoE Backup Battery

It is recommended that a minimum of a 7Ah battery is used as the main backup battery. From the accessory bag provided, connect the RED and BLACK battery termination wires to the + and - plugs. Connect the spade terminals to the battery as shown below.

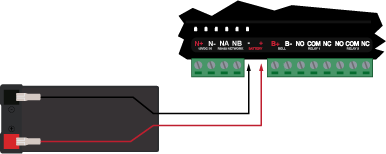

PRT-WX-DIN+ Backup Battery	PRT-WX-DIN-1D+ Backup Battery

Warning: Only attach standard lead acid batteries. Do not connect the battery wires or + and - plugs of the Power Supply to any other ancillary device (siren, lock or mag clamp etc).
