Card Reader Connection

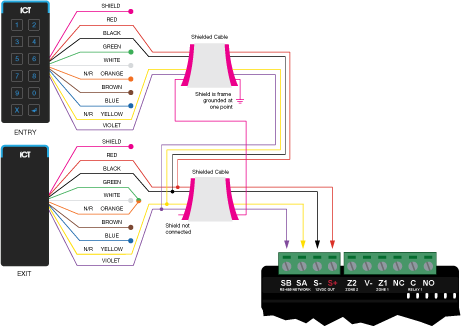

This diagram shows the connection of two RS-485 readers connected to provide an entry/exit configuration using the PRT-WX-DIN-1D controller. The Exit reader has the green and orange wires connected together.
