Cabinet Tamper Switch

The PSU-DIN includes an onboard enclosure tamper input which signals to the monitoring station or remote computer that the enclosure has been opened.

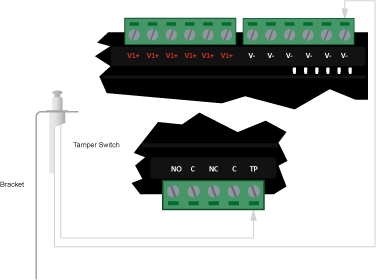

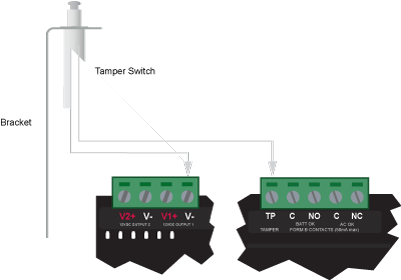

The tamper input switch should be mounted into the steel bracket provided, and connected to the tamper connection (TP) terminal and the V- terminal:
