Setting the Controller to use a Known IP Address

PRT-WX-DIN and PRT-WX-DIN-485 only

  1. Remove power from the Controller by disconnecting the 12V DC input

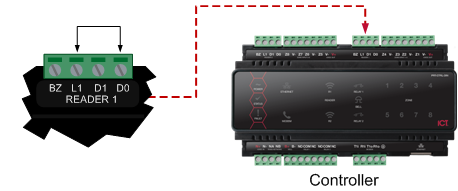

  2. Connect a wire link between the Reader 1 D0 input and the Reader 1 L1 output
  3. Power up the Controller
  4. When the Controller starts up it will use the following settings:

    IP address : 192.168.111.222
    Gateway : 192.168.111.254
    Net Mask : 255.255.255.0
    DHCP : disabled

  5. Connect to WX by entering 192.168.111.222 into the address bar of your web browser, and view or change the IP address as required. Once finished, remove the wire link.
