Testing Destination Reporting

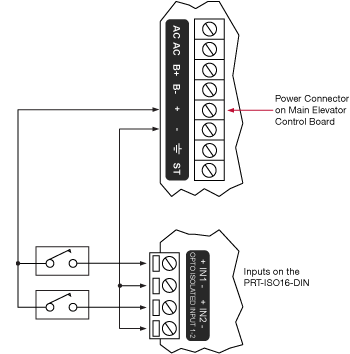

Installations that use destination reporting can be complicated and require careful planning. We recommend consulting the elevator company well in advance of providing a solution to your client, and that you also configure and setup a unit with destination reporting enabled using the simple test circuit shown. This will allow you to understand the principles and operation of the unit prior to the installation taking place.

• Use 2 standard normally open switches as shown, and wire these to the AUX output.
• Connect the common to the - of each input.
• When pressing the switch, you should see the LED illuminate on the PRT-ISO16-DIN that corresponds to the input used.

  The LED indicators will illuminate regardless of the destination reporting mode that is configured in the Reader Expander settings.
