Follow Logic XOR

The Follow Logic XOR (Exclusive OR) programmable function performs a logical XOR operation on output 1 and 2 with the controlled output changing state according to the result.

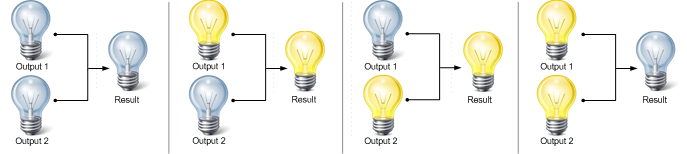

The controlled output turns on if only one of the checked outputs is on. The controlled output turns off if both, or neither of the checked outputs are off.
