Follow and Test Output

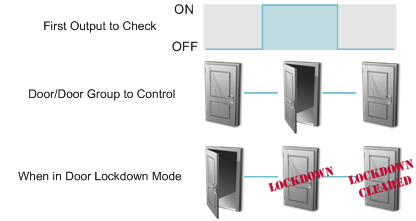

Follow and Test Output: This mode is used when the state of the door is required to follow the state of the checked output.

• If the checkout output turns on the controlled door/door group unlocks (or locks down)
• If the checkout output turns off the controlled door/door group locks (or clears the lockdown)

In between state changes, the door/door group's state is continually tested at approximately 30 second intervals. When the controlled door/door group's state is changed by an external operation, the programmable function restores it within 30 seconds.
