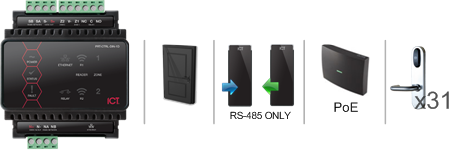

PRT-WX-DIN-1D - Installation Example

• One hardwired door can be configured via the RS-485 reader port (ENTRY/EXIT).
• One PoE router can be connected to the controller via a PoE switch.
• A maximum of thirty one Salto wireless locks can be configured from the PoE router.
