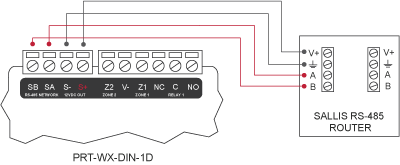

PRT-WX-DIN-1D to Salto RS-485 Router

The Single Door Controller can be connected to a Salto RS-485 Router using the onboard RS-485 network port. Power is supplied directly from the controller using the S- and S+ ports.

This configuration provides the router with a network connection and a power supply.
