PRT-WX-DIN-485 to Salto PoE Router

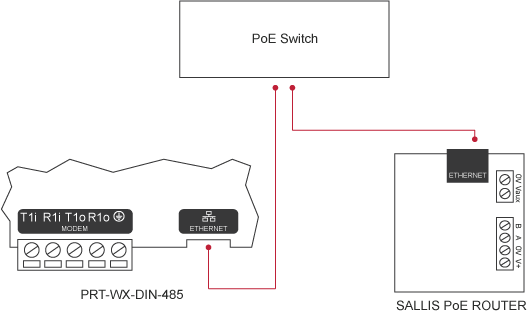

The RS-485 Enabled Controller can be connected to a Salto PoE Router using the onboard Ethernet port.

This configuration provides the router with a network connection and a power supply.

If a PoE switch is not used, power can be supplied to the router via an auxiliary power source that supplies 500mA at 12VDC. This power supply is directly connected to the router via the 0V and Vaux ports.
