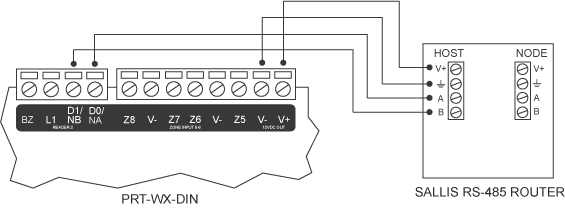

PRT-WX-DIN-485 to Salto RS-485 Router

The RS-485 Enabled Controller can be connected to a Salto RS-485 Router using one of the onboard RS-485 enabled network ports. Power can also be supplied to the router via the V- and V+ ports

This configuration provides the router with a network connection and a power supply
