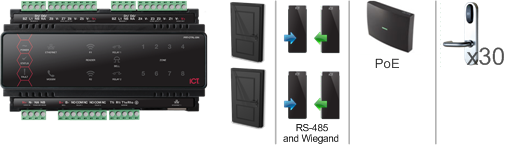

PRT-WX-DIN-485 - Installation Example

• Two hardwired doors doors may be configured (ENTRY/EXIT on two doors)
• One PoE router can be connected to the controller via a PoE switch
• The amount of nodes required by this example will vary greatly depending on the installation environment
• A maximum of thirty Salto wireless locks can be configured from the PoE Router
