PRT-WX-DIN-485 - Installation Example

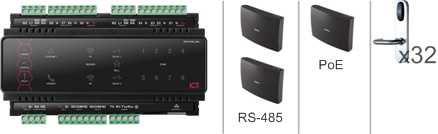

• Two RS-485 routers can be connected to the controller's two onboard RS-485 reader ports
• One PoE router can be connected to the controller via a PoE switch
• The amount of nodes required by this example will vary greatly depending on the installation environment
• A maximum of thirty two Salto wireless locks can be configured over the three routers.
