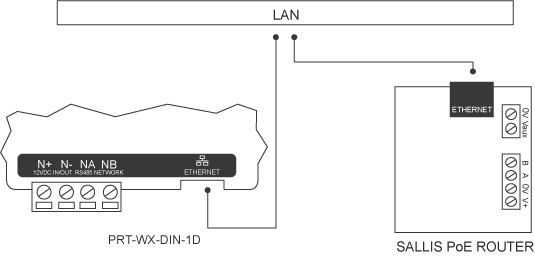

PRT-WX-DIN-1D to Salto PoE Router

The Single Door Controller can be connected to a Salto PoE Router via a PoE switch.

This configuration provides the router with a network connection and a power supply.

If a PoE switch is not used, power can be supplied to the router via an auxiliary power source that supplies 500mA at 12VDC. This power supply is directly connected to the router via the 0V and Vaux ports.
